Fitment Information

• Toyota 86 Base 2.0L H4 (2017, 2018, 2019, 2020)

• Toyota 86 GT 2.0L H4 (2018, 2019, 2020)

• Toyota 86 Hakone Edition 2.0L H4 (2020)

• Toyota 86 Special Edition 2.0L H4 (2017)

• Toyota 86 TRD Special 2.0L H4 (2019)

• Subaru BRZ Aozora Edition 2.0L H4 (2015)

• Subaru BRZ Base 2.0L H4 (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)

• Subaru BRZ Limited 2.0L H4 (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)

• Subaru BRZ Premium 2.0L H4 (2013, 2014, 2015, 2016, 2017, 2018, 2019)
• Subaru BRZ Series.Blue 2.0L H4 (2015)

• Subaru BRZ Series.Gray 2.0L H4 (2019)

• Subaru BRZ Series.HyperBlue 2.0L H4 (2016)

• Subaru BRZ Sport-tech 2.0L H4 (2013, 2014, 2015, 2016, 2017, 2018)

• Subaru BRZ Sport-tech RS 2.0L H4 (2018, 2019, 2020)

• Subaru BRZ TS 2.0L H4 (2018, 2020)

• Scion FR-S Base 2.0L H4 (2013, 2014, 2015, 2016)


Note

• Streetlite
• Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).
• Prolite
• Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

Specs & Features

• Torque Capacity (ft/lbs.): 449 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 166%

• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 8.8

• Clutch Disc Diameter (Millimeters): 224

• Input Shaft Diameter (inches): 1

• Pressure Plate Type: Xtreme
• Flywheel Type: Prolite or Streetlite
• 12 Month Warranty

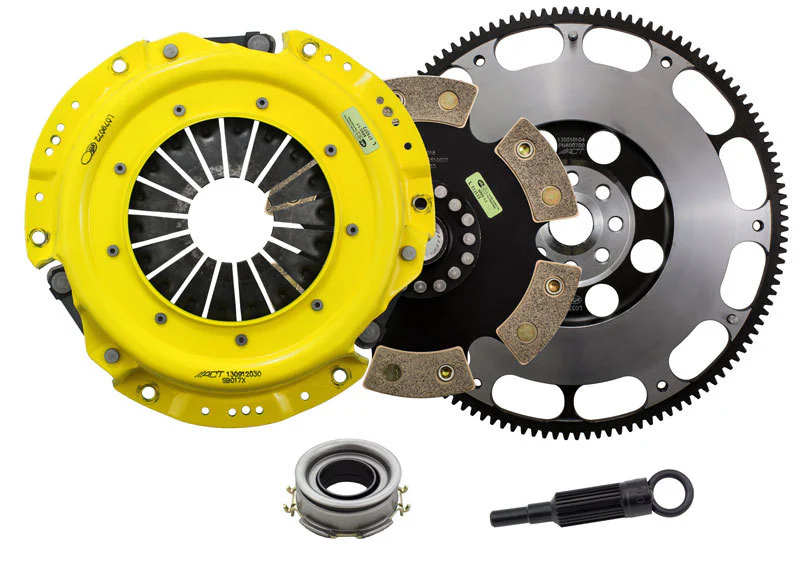

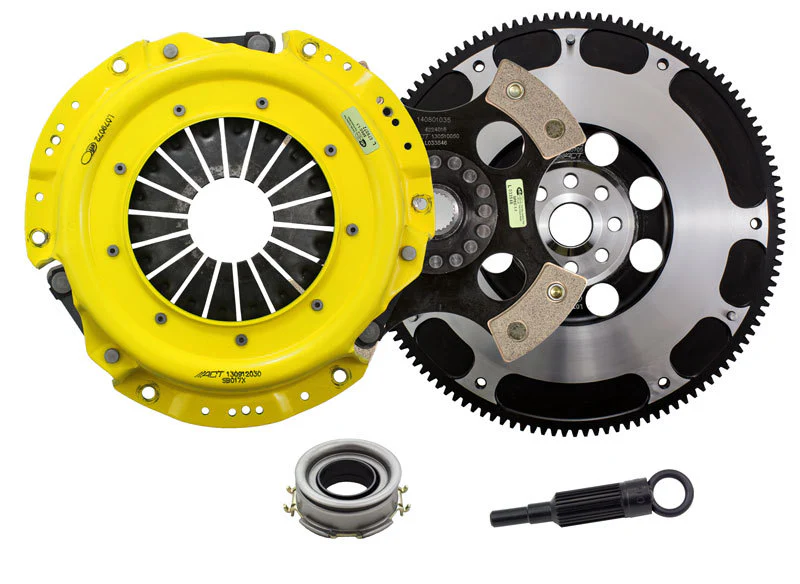

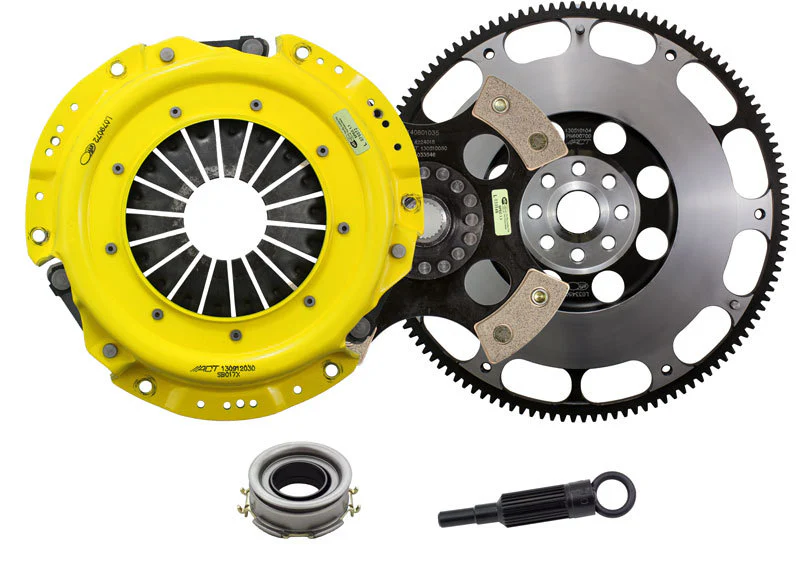

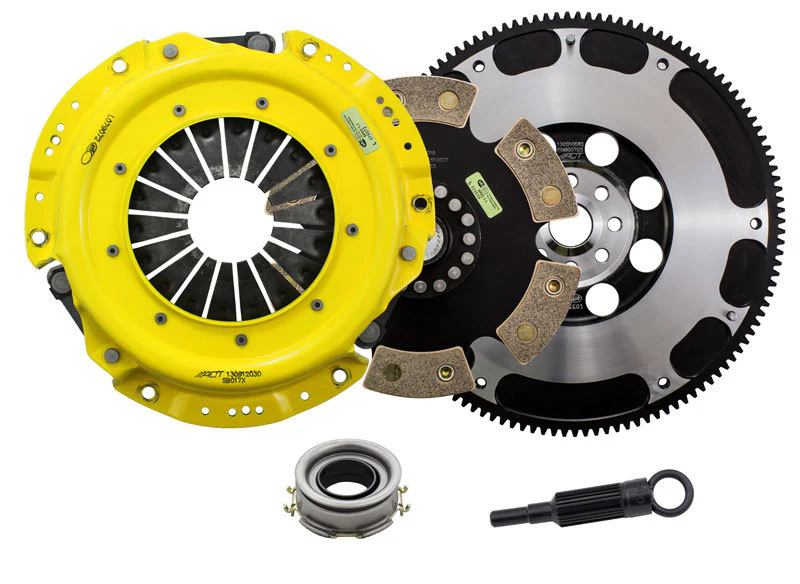

Product Description

ACT's Xtreme Duty/Race Rigid kit boasts an Xtreme pressure plate tailored for demanding drivers. Utilizing an exclusive diaphragm design, it enhances clamp load, diminishes deflection, and extends clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process for superior performance. Precision cover stampings ensure rigidity and consistency. The 4-pad rigid race discs, crafted with top-notch ceramic friction materials, feature a chrome-moly hub treated for durability. Its lightweight, sturdy construction enables swift shifts and dependable operation. While engagement may feel harsher, the 4-pad rigid race disc facilitates faster shifting, particularly ideal for smaller engines with compact disc sizes.

ACT Xtreme Duty /Race Rigid Clutch Kit Features:

• Feel: Experience a pedal with moderate to heavy effort, delivering aggressive engagement and increased gear rattle.

• Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design, although the rigid design may lead to increased spline wear over time.

• Quality: Meticulously engineered, precisely assembled, and accurately balanced, this product utilizes select ceramic friction materials for high heat tolerance and maximum performance.

• Recommended Use: This product is specifically recommended for race use only, ensuring optimal performance in high-performance driving scenarios.

• ACT Difference: Each unit undergoes 100% clamp load testing and dynamic computer balancing, guaranteeing smooth operation even at high RPMs.
