Fitment Information

• BMW 525i Base 2.5L L6 (1991, 1992, 1993, 1994, 1995, 2001, 2002, 2003)

• BMW 528i Base 2.8L L6 (1997, 1998, 1999, 2000)

• BMW 530i Base 3.0L L6 (2001, 2002, 2003)

Note

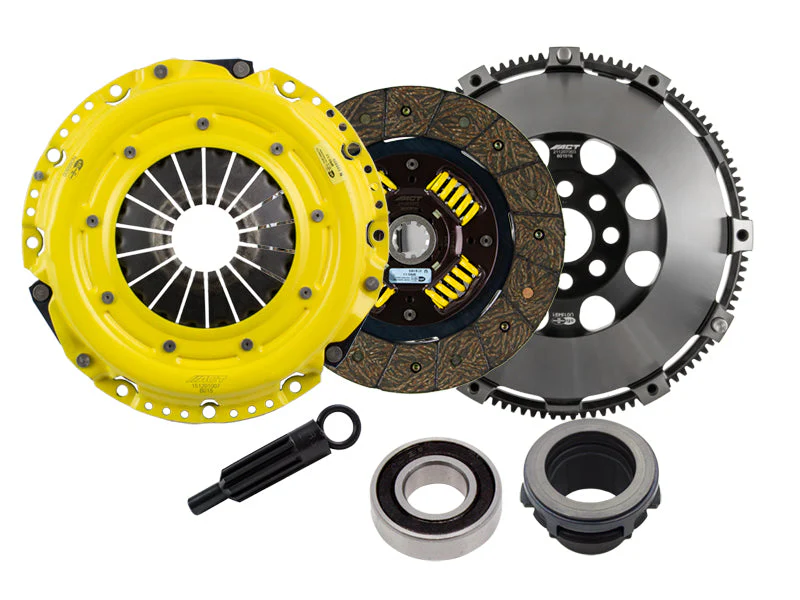

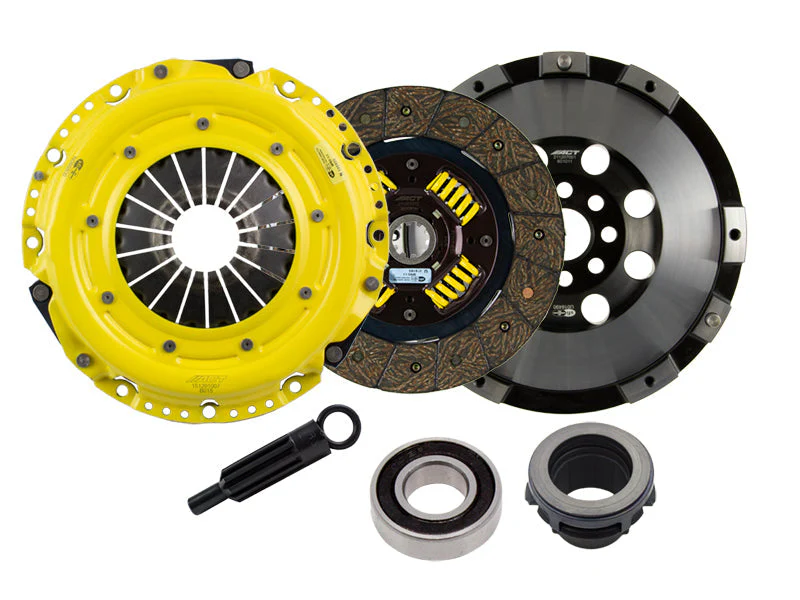

• w/ Flywheel Kit:
• Conversion kit. Includes ACT Streetlite or Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
• w/o Flywheel Kit:
• BM14-XTSS - Must be used with ACT flywheel (not included). Pressure plate bolts included (M8-1.25 x 20mm).
• BM17-XTSS - Conversion kit. Must be used with ACT 601011 or 601016 flywheel (not included in kit). Pressure plate bolts included (M8-1.25 x 20mm).

Specs & Features

• w/ Flywheel Kit:
• Item Description: XT/Perf Street Sprung

• Product Weight (lbs.): 30.2

• Torque Capacity (ft/lbs.): 549

• Torque Capacity Over OE: 79%

• Disc Material: Organic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1.125

• Pressure Plate: Xtreme

• Flywheel Type: Streetlite

• Flywheel Tooth Quantity: 135
• w/o Flywheel Kit:
• Item Description: XT/Perf Street Sprung

• Product Weight (lbs.): 19.5

• Torque Capacity (ft/lbs.): 549

• Torque Capacity Over OE: 79%

• Disc Material: Organic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1.375

• Pressure Plate Type: Xtreme

Product Description

ACT's Xtreme Duty/Performance Street Sprung kit showcases an Xtreme pressure plate tailored for the toughest drivers. Crafted with an exclusive diaphragm design, ACT's Xtreme pressure plates elevate clamp load, minimize deflection, and extend clutch lifespan through a rigorous four-stage heat-treating process. Engineered with precision cover stampings for enhanced rigidity and consistency, ACT's Performance street discs, renowned for their premium organic materials rich in copper, ensure superior heat transfer and boast a steel-backed lining for heightened burst strength and endurance. With reduced marcel for swifter shift action to complement ACT pressure plates, these discs guarantee quiet operation alongside heightened robustness and reliability.

ACT Xtreme Duty Clutch Kit Features:

• Feel: Experience moderate to heavy pedal effort with smooth engagement, along with OE to mild gear rattle for a balanced driving experience.

• Life: Enjoy longer friction life thanks to ACT's exclusive diaphragm design, providing extended durability and reliability.

• Quality: Engineered with precision and assembled meticulously, this product is accurately balanced and crafted with premium organic friction materials. It offers excellent heat tolerance and reduced fade for enhanced performance.

• Recommended Use: Ideal for both street and race use, offering versatile performance and reliability in various driving conditions.

• ACT Difference: Every unit undergoes 100% clamp load testing and dynamic computer balancing, ensuring smooth operation and high RPM reliability.
