Fitment Information

• Dodge Ram 1500 3.7L / 4.7L / 5.7L (2009, 2010)
• Dodge Ram 1500 DT 3.0L (2020, 2021, 2022)
• Dodge Ram 1500 DT 3.6L / 5.7L (2019, 2020, 2021, 2022)
• Dodge Ram 1500 DT 6.2L (2021, 2022)
• Dodge Ram 1500 Classic DS 3.0L (2014, 2015, 2016, 2017, 2018, 2020, 2021, 2022)
• Dodge Ram 1500 Classic DS 3.6L (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)
• Dodge Ram 1500 Classic DS 3.7L (2011, 2012)
• Dodge Ram 1500 Classic DS 4.7L (2011, 2012, 2013)
• Dodge Ram 1500 Classic DS 5.7L (2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)
• Dodge Ram 1500 Classic DS 6.2L (2021, 2022)
• Dodge Ram 2500 5.7L (2014, 2015, 2016, 2017, 2018)
• Dodge Ram 2500 6.4L / 6.7L (2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)
• Dodge Ram 3500 5.7L (2013, 2014, 2015, 2016, 2017, 2018)
• Dodge Ram 3500 6.4L (2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)
• Dodge Ram 3500 6.4L (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)
• Dodge Ram 4500 6.4L / 6.7L (2019, 2020, 2021, 2022)
• Dodge Ram 5500 6.4L / 6.7L (2019, 2020, 2021, 2022)

Specs & Features

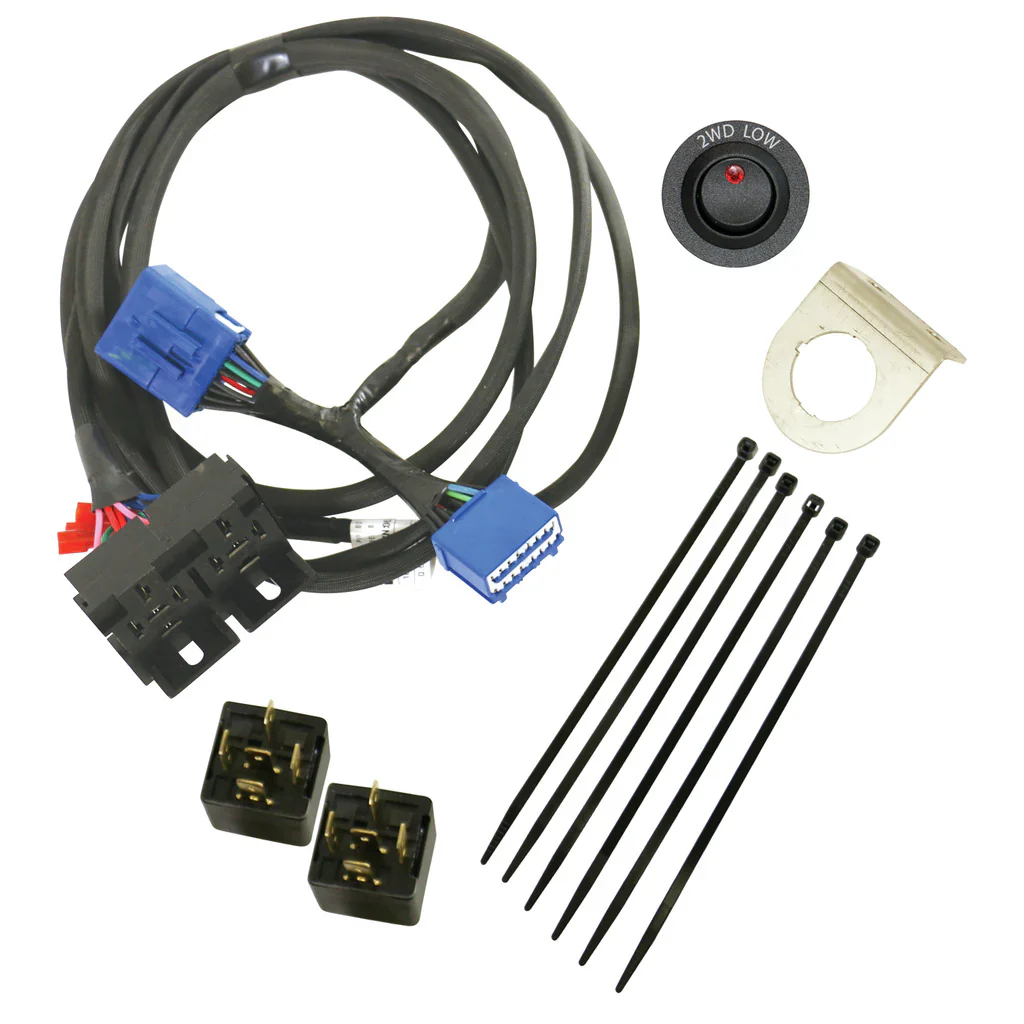

• Installation is simple, the kit plugs in below the glove box
• No wire cutting or splicing and no wires through the firewall
• Kit comes with an illuminated rocker switch for control and to indicate when the front axle is being overridden
• Designed to allow the operator to manually disable the front wheel drive mechanism by holding the hubs in the free (2WD) mode with the transfer case in 4WD low range
• By allowing the front wheels to be disengaged, maximum torque is available to the rear wheels
• This will also allow for sharp "All The Way Over" turns without the front axle u-joint hopping or binding
• With this kit installed, the front wheels will NOT be driven through the transfer case
• Allows to have full power and torque while in a high gear reduction applied to the rear axle(s) only


Warranty

• Parts:  12 months  or 12, 000 Miles
