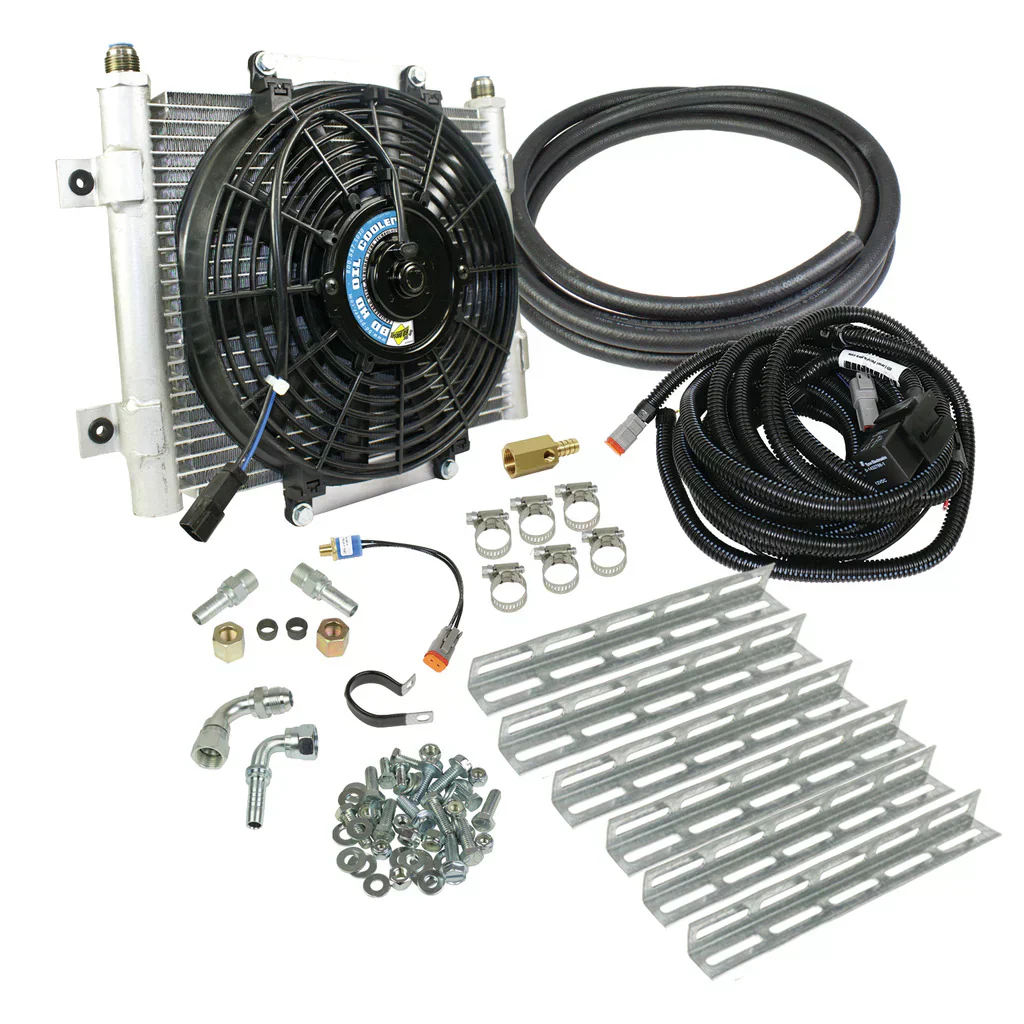

BD Diesel Xtrude Transmission Oil Cooler GMC C/K 1500 / 2500 / 3500 (91-99) 5/16" Line w/ Fan - 1030606-5/16

Product image 1
1 / 4

BD Diesel Xtrude Transmission Oil Cooler GMC C/K 1500 / 2500 / 3500 (91-99) 5/16" Line w/ Fan - 1030606-5/16

Fitment Information

  • GMC C/K 1500 4.3L / 5.0L / 5.7L (1991, 1992, 1993, 1994, 1995, 1996, 1997)
  • GMC C1500 6.2L / 7.4L (1991, 1992, 1993)
  • GMC C/K 2500 4.3L (1991, 1992, 1993, 1994, 1995)
  • GMC C2500 5.0L (1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998)
  • GMC C2500 5.3L (1999)
  • GMC C/K 2500 5.7L / 7.4L (1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
  • GMC C/K 2500 6.2L (1991, 1992, 1993)
  • GMC C/K 3500 5.7L / 7.4L (1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
  • GMC C/K 3500 6.2L (1991, 1992, 1993)
  • GMC K1500 4.3L (1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998)
  • GMC K1500 6.2L (1991, 1992, 1993)
  • GMC K2500 5.0L (1991, 1992, 1993, 1994, 1995, 1996, 1997)

Note

  • Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

Specs & Features

  • 22% more cooling over other designs
  • 200 Micro Extruded passages
  • Large surface area to transfer heat for external air flow cooling
  • Turbulent oil flow design promotes a more complete cooling
  • Large 5/8-inch ports prevents inlet/outlet restriction
  • Furnace brazed rails have been tested to 300psi of pressure
  • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
  • 33,930 BTU/HR and in excess of 30,000 GVW!
  • Kits complete with all fittings, clamps, hoses and hardware
  • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
  • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
  • Chevy 1991-1999 4L80E - 5/16-inch Cooler Lines
  • Ford 1994-1997 E4OD - 5/16-inch Cooler Lines

Warranty

  • Parts:  24 months  or 24, 000 Miles

    Product Description

    BD Diesel's Xtruded Transmission Oil Cooler offers 22% more cooling than other designs. Its 200 micro-extruded passages provide a vast surface area for effective heat transfer, while turbulent oil flow ensures complete cooling. The cooler's large 5/8-inch ports prevent inlet/outlet restriction, and furnace brazed rails withstand up to 300psi. An 80-watt, 10-inch, 800 CFM electric fan, thermostatically controlled, ensures optimal oil temperature. This setup delivers 33,930 BTU/HR and supports over 30,000 GVW. The package includes all fittings, clamps, hoses, hardware, and a DIY galvanized bracket kit for quick, clean installation. The pre-wired loomed harness with fuse and relay features OEM-style sealed connectors for a factory-like finish and protection against the elements.

        $220.78

        Original: $735.95

        -70%
        BD Diesel Xtrude Transmission Oil Cooler GMC C/K 1500 / 2500 / 3500 (91-99) 5/16" Line w/ Fan - 1030606-5/16—

        $735.95

        $220.78
