Fitment Information

• Dodge Ram 2500 6.7L (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)

• Dodge Ram 3500 6.7L (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)

Note

• Recommend Option - BD Heavy Duty Transmission Pan

Specs & Features

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty accumulator plate to prevent accumulator blowout
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum

• Over Drive clutches 17% increase and Under Drive clutches 20% increase
• Stage 2 Intermediate Kit:
  • Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
  • Stiffer Billet Intermediate Reaction Plate, Over Drive/Rev Reaction Plate
  • Billet 4C Spring Retaining Ring
  • Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
  • Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
  • Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
  • O-Ring - pump Cover

• Stage 3 Heavy Duty Kit:
  • Qty 3: 2C Clutch Friction
  • Qty 3: 2C Clutch Steel
  • Qty 3: 4C Clutch Friction
  • Qty 3: 4C Clutch Steel
  • Qty 15: OD Clutch Friction
  • Qty 15: OD Clutch Steel
  • Qty 7: Reverse Clutch Friction
  • Qty 7: Reverse Clutch Steel
  • Filter - Pan
  • Filter - Spin On
  • Pump Cover
  • Billet OD/Reverse Selector Plate
  • Billet OD/UD Reaction Plate
  • Stiffer Billet Intermediate Reaction Plate
  • Stiffer Billet OverDrive/Rev Reaction Plate
  • Billet 4C Spring Retaining Ring
  • Gasket - Oil Pan
  • Gasket - Solenoid Pack
  • Gasket Kit - Oil Cooler
  • Seal - Solenoid Pack Connector
  • Seal - 4wd Output Shaft
  • Seal - 2wd Output Shaft
  • Seal - Input Shaft
  • Seal Kit - 2-4C
  • Seal Kit - Input Drum
  • Seal Kit - Solenoid Pack
  • Seal Kit - Internal
  • Seal Kit - External
  • O-Ring - pump Cover
  • Qty 2: Check Balls 1/4in

• Stage 4 Master Rebuild Kit
  • Upgraded One Way Clutch/Sprag
  • Over Drive clutches 17% increase and Under Drive clutches 20% increase
  • Qty 2: Check Balls 1/4in
  • Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
  • Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
  • Qty 15: OD Clutch Friction, OD Clutch Steel
  • Filter - Pan, Spin On
  • Pump Cover
  • Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
  • Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
  • Billet 4C Spring Retaining Ring
  • Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
  • Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
  • Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
  • O-Ring - pump Cover


Warranty

• Parts:  12 months or 12,000 Miles

Product Description

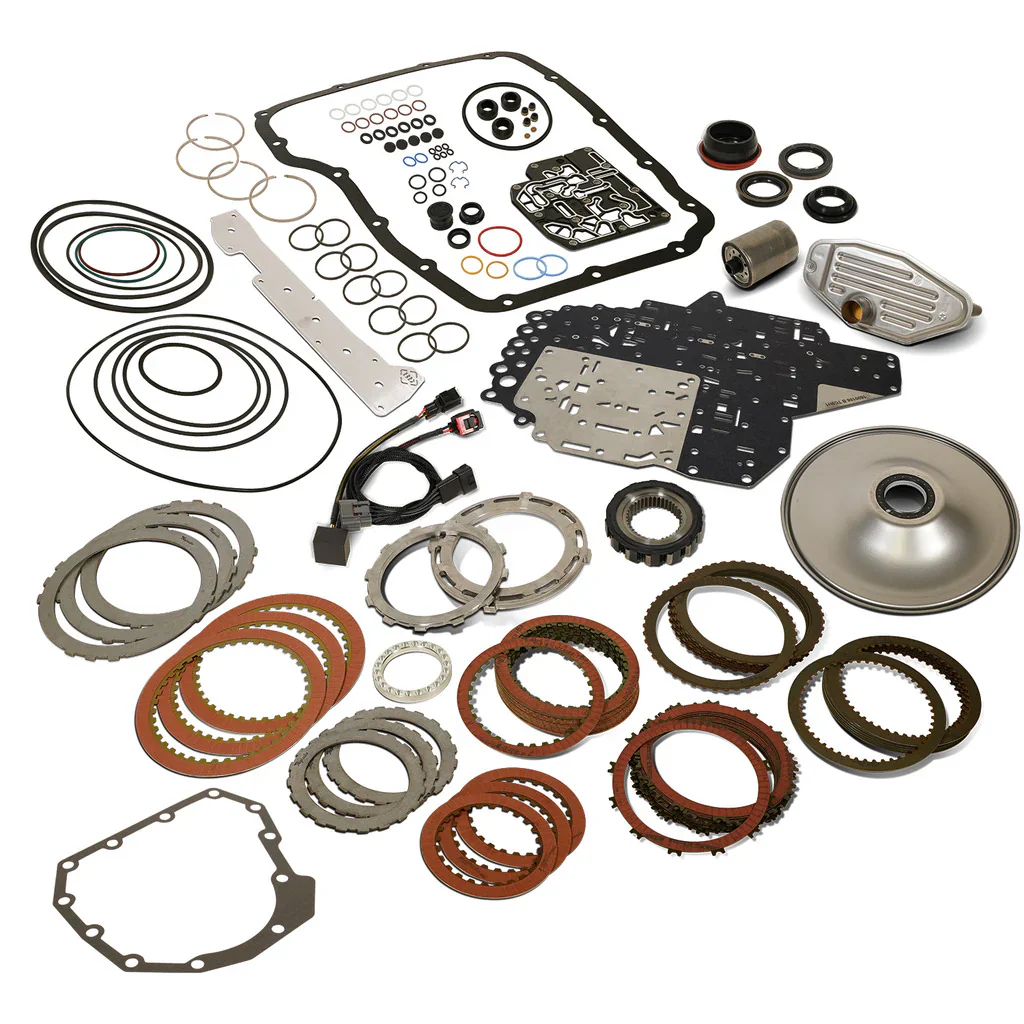

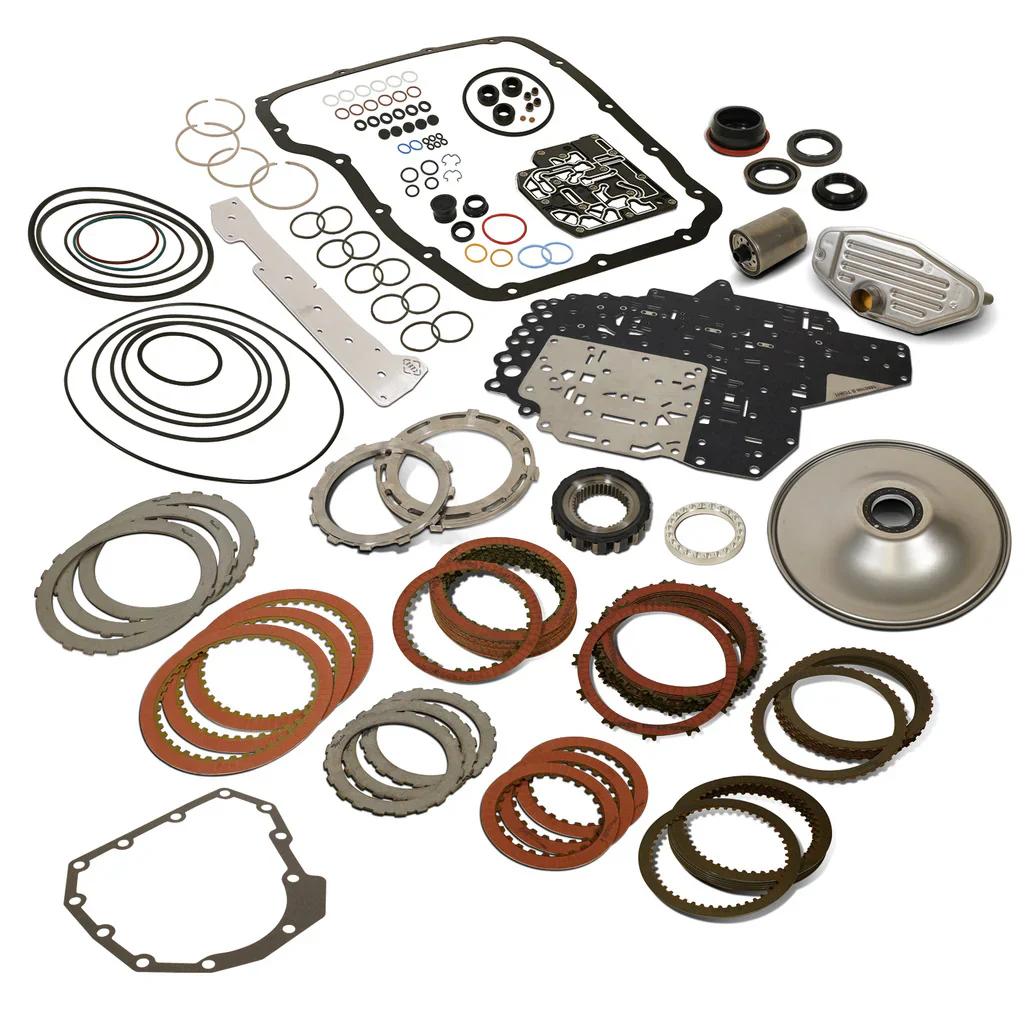

Looking to rebuild your own transmission and need specialty parts? BD Diesel offers a range of rebuild kits with the same high-quality parts used in BD Diesel's performance transmissions. These kits cater to seasoned builders and include essential rebuild parts and gaskets. Options range from stock HP kits to the comprehensive Stage 4 Master Kit, which includes nearly everything used in BD Diesel's transmission rebuilds. Trust BD Diesel's expertise and quality to ensure your transmission rebuild meets your specific needs.
