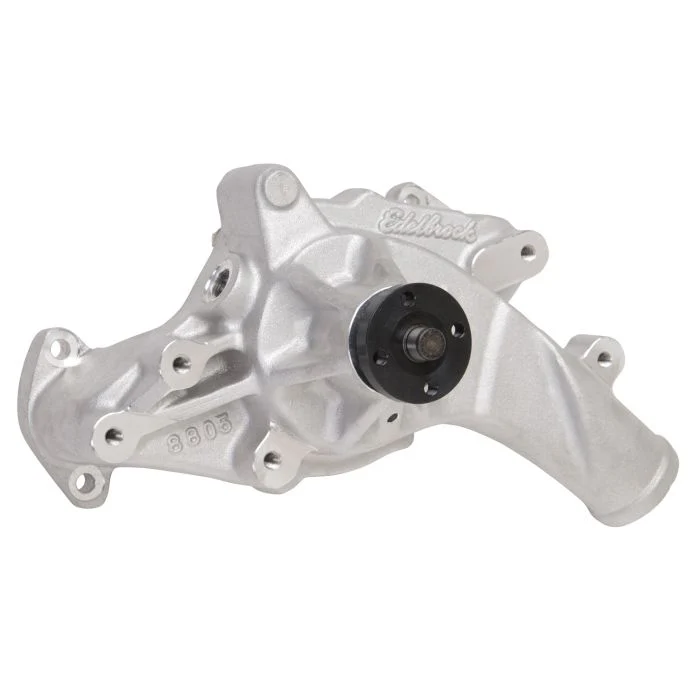

Edelbrock Water Pump Ford FE 352-428 (1965-1976) Satin Finish 8805
- Application: Application Specific
- Thermostat And Housing Included: No
- Mounting Hole Quantity: 4
- Housing: Material Aluminum
- Impeller Material: Powdered Metal
- Installation Warnings: Yes
- Hub Hole: Quantity 6
- Fan Clutch Included: No
- Impeller Vane Quantity: 6
- Includes Back Housing: Yes
- Related Cooling Fan Components: No
- Casting Number: 8805
- Availability Note: Available to Order
- Warranty: 12 Months
- Hub Height: 7.560 in
- Impeller Rotation: Standard
- Outlet Quantity: 1
- Pulley Included: No
- Water Pump Drive: Type V-Belt
Install Notes
-
Prior to installation, install the bypass water pipe in the water pump housing; Apply teflon thread sealant to the bypass pipe thread and screw it into the bypass hole with a 3/8" Allen wrench (internal hex); Check that there is clearance between the water pump bypass tube and the intake manifold bypass tube with the water pump in its installation position; If there is interference, the water pump housing could be broken when the mounting bolts are tightened; If you need to thread the fitting in deeper for your application, you can increase the size of the lead in chamfer with a chamfer tool; Several of the water pump mounting bolt holes break through to water in Ford FE engines, thread sealer or silicone should be applied to the bolt threads at these locations; Installation is the same as for original equipment pumps. Consult your service manual for any other specific procedures.; CAUTION: Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing. Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications. Verify that the radiator fan is properly balanced. Imbalanced fans can cause severe damage and/or injury and will void your warranty.;
-
SPECIAL NOTES: If the engine is not using a water thermostat, a water flow restrictor plate should be used in place of the thermostat. The hole size needed in the restrictor plate may vary in size from 11/16" to 1" diameter depending on your water system. Use of a restrictor plate increases the water pressure in the block
