American Thunder® is the "original" Flowmaster sound. In most cases a very aggressive sound level, American Thunder systems use various chambered mufflers to achieve the performance gains and aggressive sound that you want from your car or truck, inside and out. Available in stainless steel or economical aluminized steel, American Thunder systems are a great choice when you want to be heard.

Fitment Information

• Ford Ranger 2.3L (2019, 2020, 2021, 2022, 2023)
• Fits 2 and 4 wheel drive. Fits Super Crew Cab 5-foot bed and Super Cab 6-foot bed

Emissions Compliance

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Specs & Features

• Emission Code: 5

• Exhaust Series: American Thunder

• Exit Position: DOR/S

• Material: 409 Stainless Steel

• Mount Type: Uses Factory Hangers

• Muffler Body Length (in): 10

• Muffler Color: Natural

• Muffler Finish: Brushed

• Muffler Inlet Diameter: 3.00

• Muffler Inlet Location: Centered

• Muffler Material: 409S Stainless Steel

• Muffler Outlet Diameter: 2.50

• Muffler Outlet Location: Dual Outlet

• Muffler Overall Length (in): 15.75

• Muffler Part Number: Kit Only

• Muffler Quantity: 1

• Muffler Series: Outlaw

• Muffler Shape: Oval

• Muffler Type: Reflection

• Product Type: Exhaust System

• Single Dual: Dual

• Sound Level: Aggressive / Moderate

• System Type: Cat-back

• Tip Cut: Angle

• Tip Diameter: 3.50

• Tip Edge Style: Cut

• Tip Finish: Polished

• Tip Length: 13

• Tip Logo: Embossed

• Tip Material: 304 Stainless

• Tip Quantity: 2.00

• Tip Shape: Round

• Tip Style: Double Wall

• Tubing Diameter (in): 2.50

• Tubing Material: 409S Stainless Steel

• UPC: 090127818657

• California Proposition 65 Chemical Name: Chromium (hexavalent compounds) / Nickel (Metallic)
• California Proposition 65 Required: Yes

• Part Number: 818158

Product Description

This Flowmaster American Thunder® cat-back exhaust system for the 2019-2023 Ford Ranger with the 2.3-liter engine is manufactured using durable 409 stainless steel throughout and features 2.50 and 3.00-inch mandrel bent pipes for better exhaust gas flow. An Outlaw series muffler is used for an aggressive to moderate sound level and maximum performance. Gain up to 9 hp and 12 lb-ft of torque at the rear wheels over stock. This dual exit system has dual 3.50-inch polished stainless steel tips with the Flowmaster logo embossed in them, for added style and a custom look, and can be configured to exit dual out the rear or dual out the side. This system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warrant

y.

Features:

• 2.50 and 3.00-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

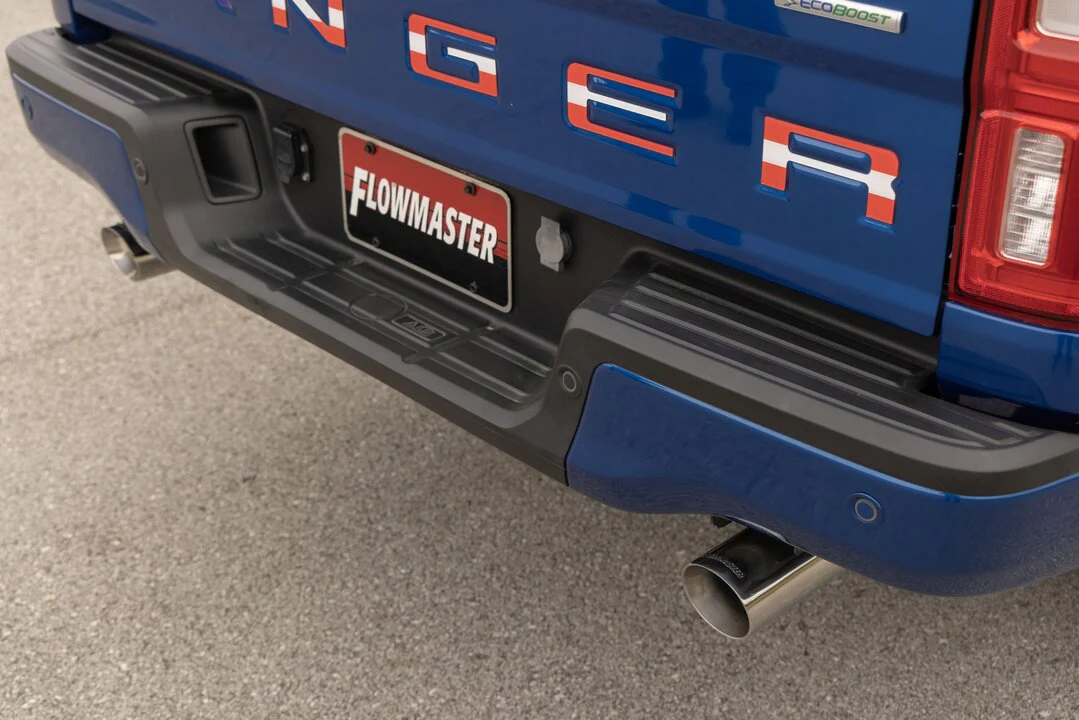

• Dual 3.50-inch polished stainless steel tips add a custom look to the truck
• Includes complete hardware and factory styled hangers in the stock location for an easy installation
• Outlaw series performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
• Backed by Flowmaster's Lifetime Limited Warranty

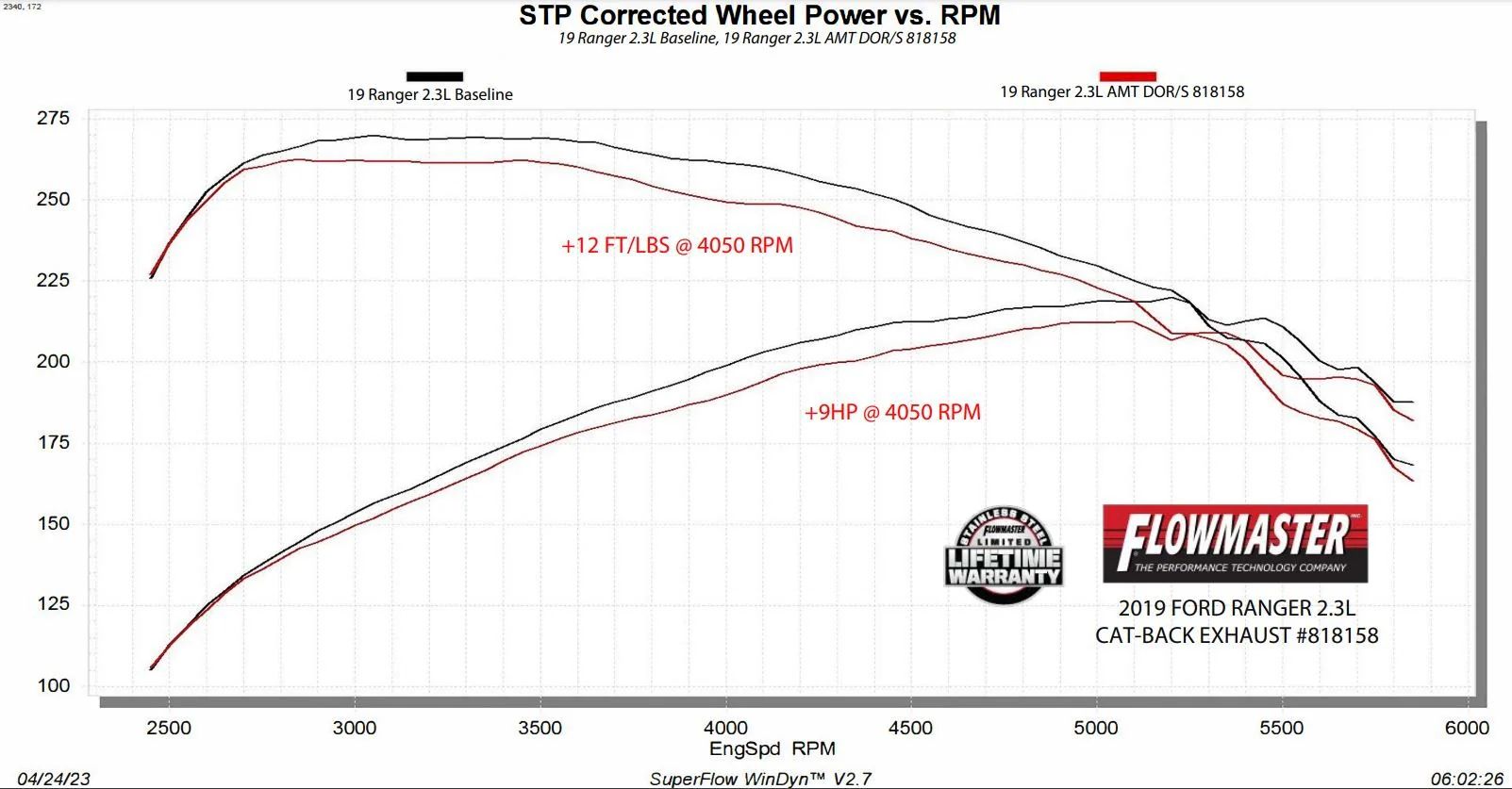

• Max gains of 9 hp and 12 lb-ft of torque at the rear wheels

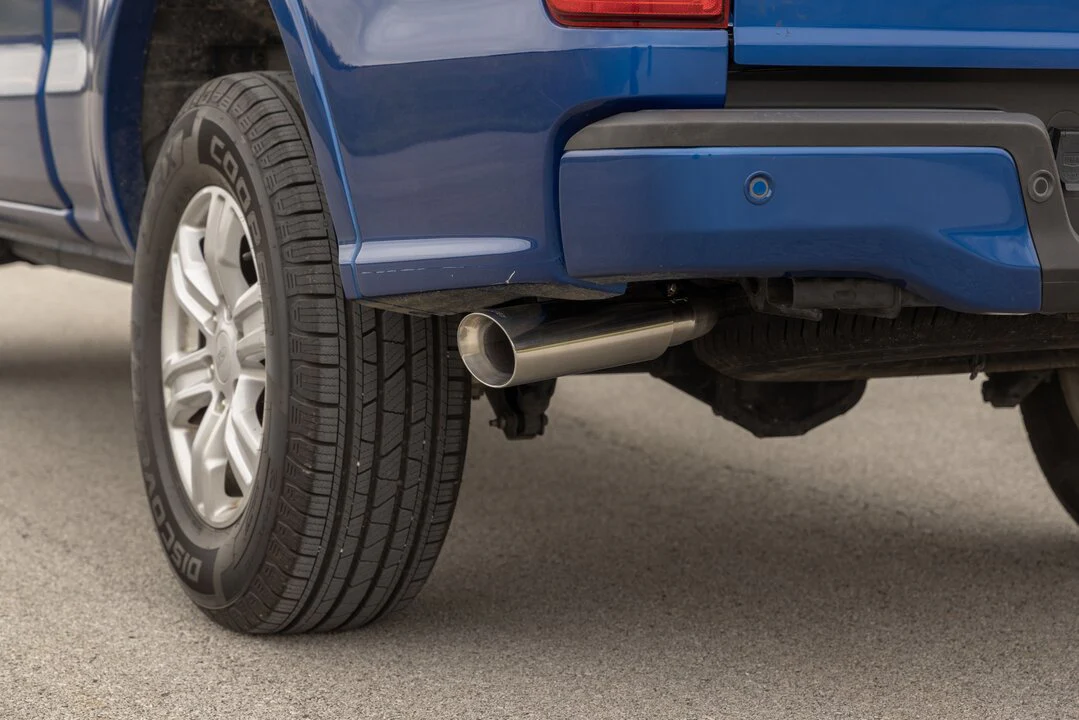

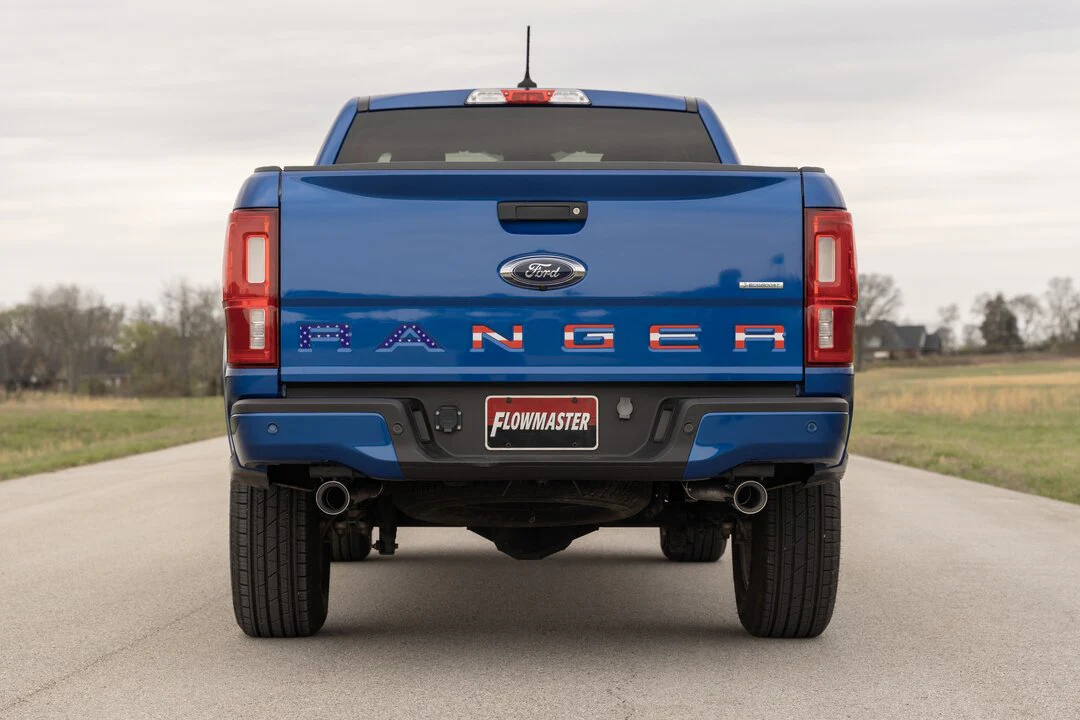

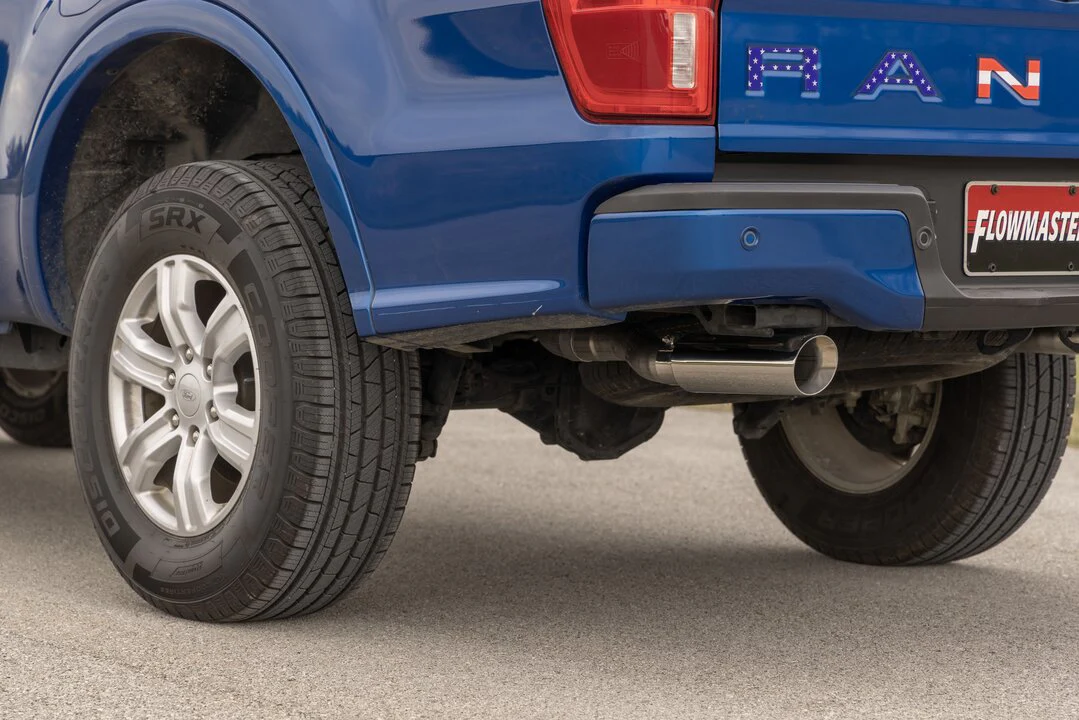

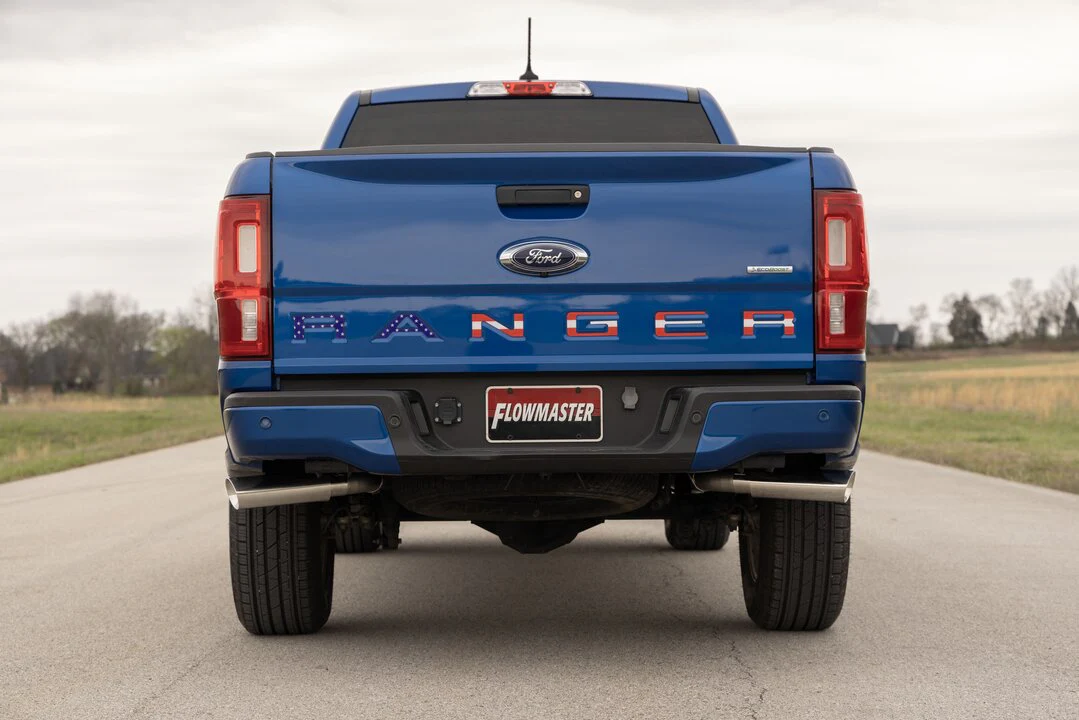

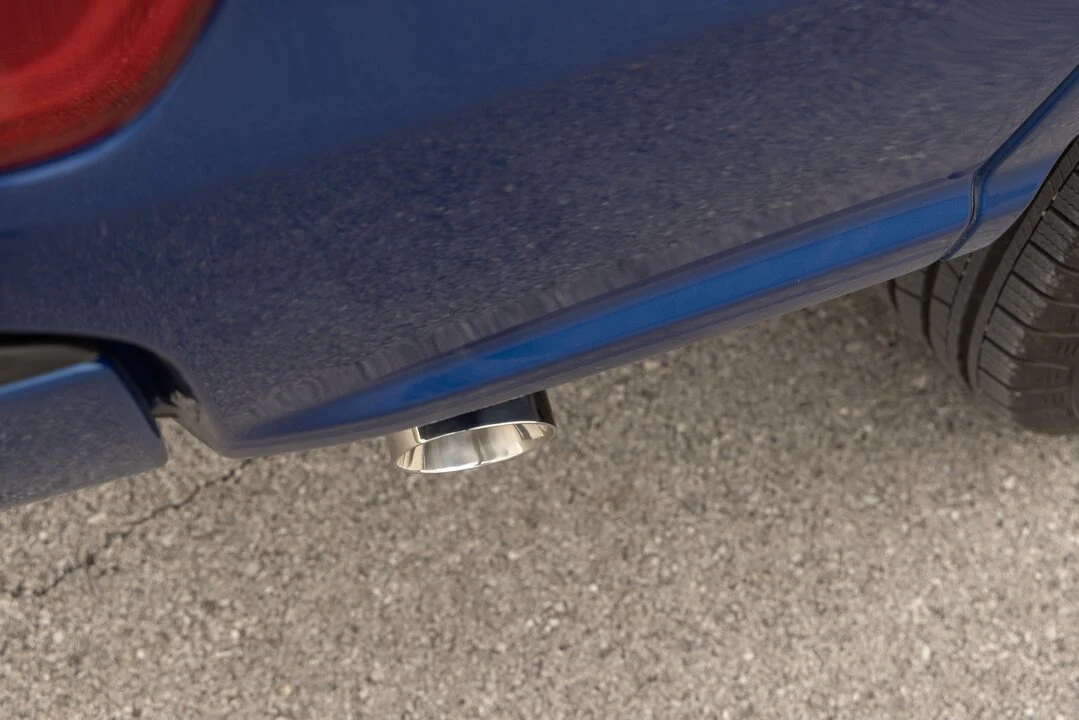

• Can be configured to exit dual out the rear or dual out the side for a custom look
