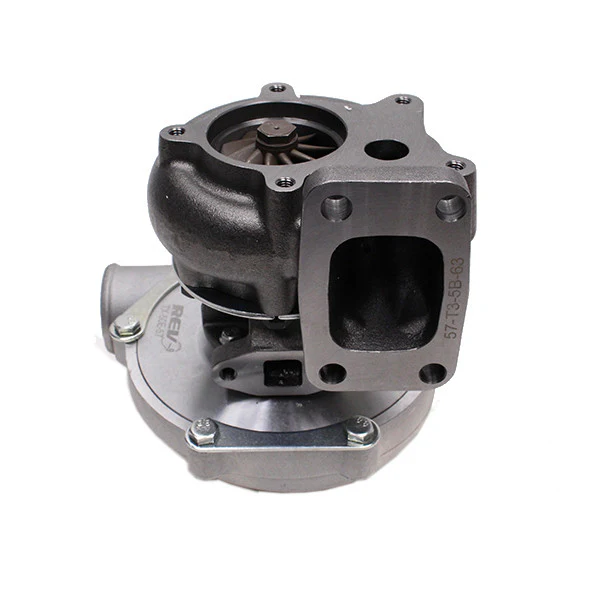

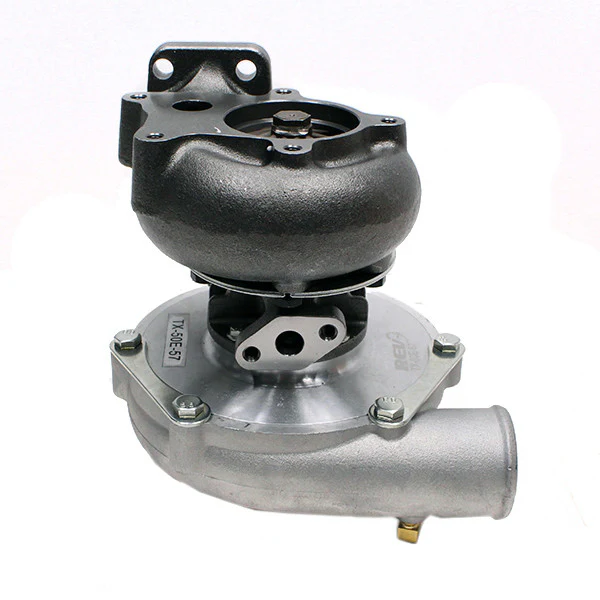

REV9 TX-50E-57 Turbocharger T3 Flange 5-Bolt Exhaust .63 A/R Cast Iron or Billet Aluminum
Fitment Information
- Universal
This part does not have a CARB EO and cannot be sold or shipped to California.
Specs & Features
- Turbine Inlet: T3
-
Compressor Material:
- Standard cast compressor wheel
- Billet compressor wheel (BW) machined from solid aluminum
-
Compressor Inlet: 3.00"
-
Compressor Outlet: 2.00"
-
Compressor Cover: TX-50E
-
Compressor Wheel Diameter: 53mm / 75mm
-
Turbine Wheel Diameter: 57mm / 65mm
-
Exhaust Trim: .63 A/R
-
Turbine Flange Type: T3
-
Downpipe Flange Type: 5-Bolt Standard
-
Cooling Type: Oil Cooled
- Horsepower Rating: Up to 400HP
- Recommended Oil Restrictor Size: 0.065"
In the Box
- Rev9 TX-50E-57 Turbocharger
- Pre-Installed Turbine and Compressor Housing
- Installation Hardware and Accessories
